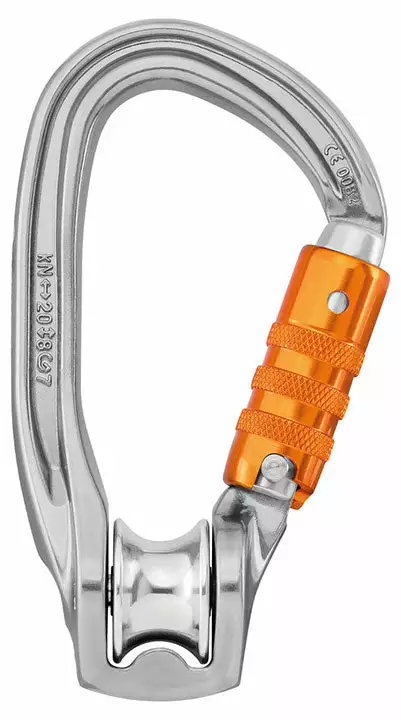

Petzl Rollclip Z Triact Pully-Carabiner

ROLLCLIP Z is a pulley-carabiner with a gate opening on the non-pulley side to facilitate installation on anchors and devices. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system.

Description

Easier handling:

sheave mounted on sealed ball bearings for excellent efficiency

gate opening on the non-pulley side, to facilitate installation on devices

Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place

H cross-section of carabiner:

ensures an improved strength-to-weight ratio

protects markings from abrasion

Two locking systems available:

TRIACT-LOCK: automatic locking with triple-action gate opening

SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked

Specifications

Material(s): aluminum

Min. rope diameter: 7 mm

Max. rope diameter: 13 mm

Sheave diameter: 18 mm

Maximum working load: 2 x 2 = 4 kN

Efficiency: 85 %

Major axis strength: 20 kN

Minor axis strength: 8 kN

Open gate strength: 7 kN
